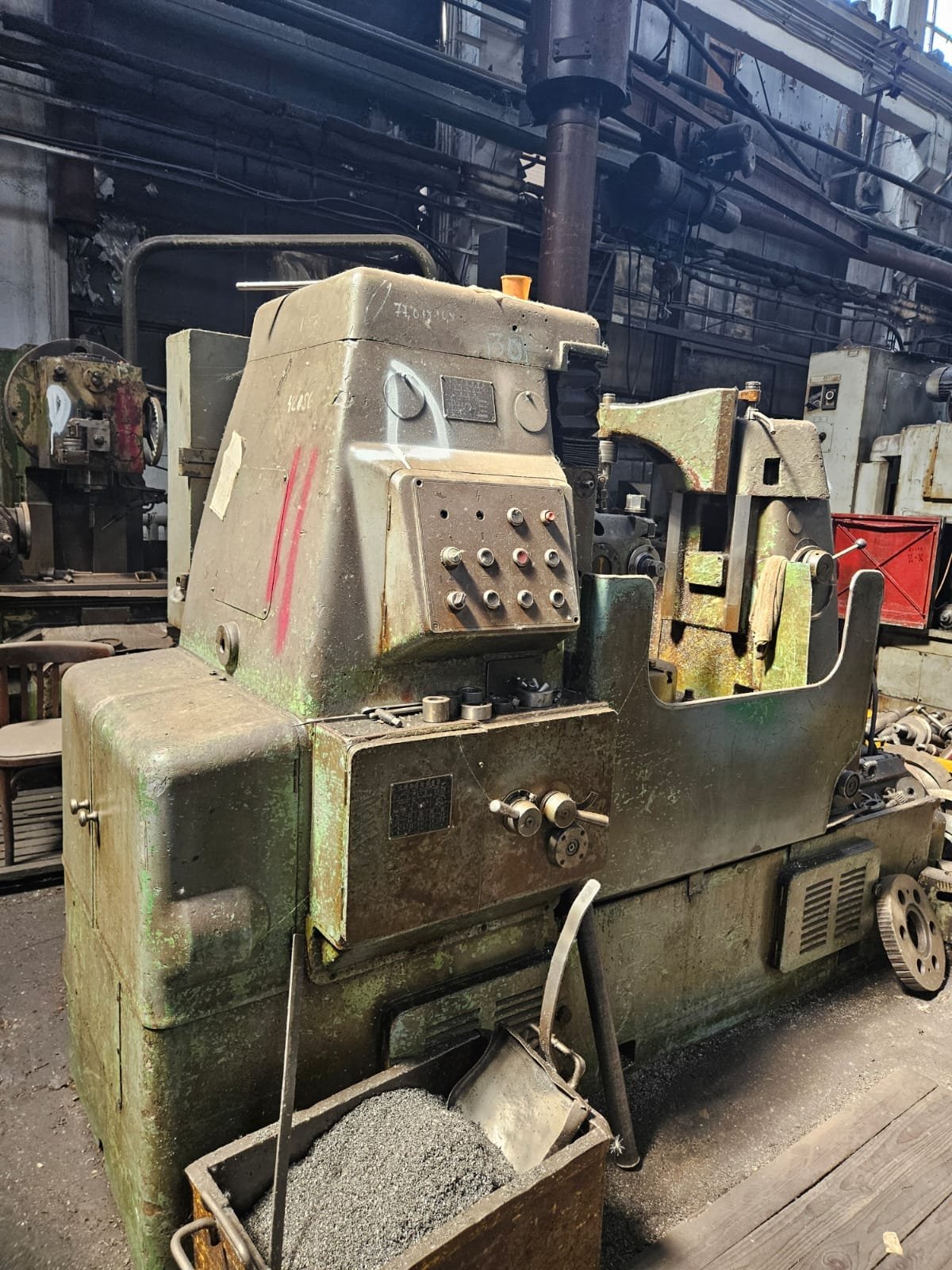

Gear hobbing machine Y3180H 800 mm dia.
Manufactured in China
- Max. workpiece diameter
- 800 mm
- Max. module
- 10
- Max. gear width
- 300 mm
- Worktable diameter
- 650 mm
- Machine weight
- 5 500 kg
Inspection welcome. The machine can be inspected in Romania before you buy. Tell us when you want to come and we will have it ready.
Technical data
| Machine type | Y3180H, vertical, successive indexing |
|---|---|
| Max. workpiece diameter | 800 mm |
| Max. module | 10 |
| Max. gear width | 300 mm |
| Worktable diameter | 650 mm |
| Table centre hole | 80 mm |
| Max. hob diameter | 180 mm |
| Main motor power | 5.5 kW |
| Work | Spur and helical gears, worm wheels, chain wheels, short spline shafts |
| Cutting | Climb or conventional milling |
| Equipment | Automatic stop mechanism, safety device, automatic lubrication |
| Overall dimensions (L × W × H) | 2 752 × 1 490 × 1 870 mm |
| Machine weight | 5 500 kg |
| Price | € 5 000 |
| Manufacturer | China |
About this machine
What it is and what it is good for.
A Y3180H vertical gear hobbing machine working by successive indexing, for gears up to Ø 800 mm in module 10 and 300 mm wide, on a Ø 650 mm table. The hob can be up to Ø 180 mm and the main drive is 5.5 kW.
It is not only for spur and helical gears: the machine also cuts worm wheels, chain wheels and short spline shafts, which makes it a sensible single machine for a shop that does varied gear work rather than one product. It will cut in climb or conventional milling, and comes with an automatic stop mechanism, a safety device and automatic lubrication.
The Y3180H is still in production and new machines of this model list at over USD 10 000. At € 5 000 this one costs about half. It weighs 5 500 kg and fits in 2 752 × 1 490 mm of floor space.
Send us an enquiry for further photographs, the year of manufacture and delivery terms.
